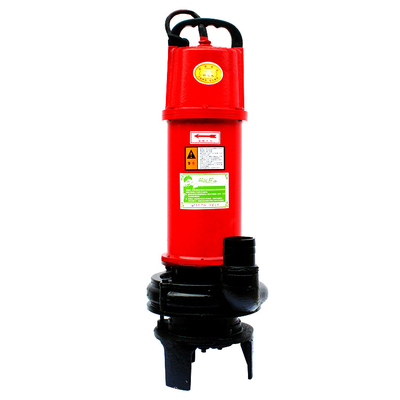

high quality hot sell portable submersible sewage pump sand dredging slurry pump mud suction pump for dirty water
ZJ series is equipped with two blades--the external and internal blades, the blockage can be avoided effectively.
Anti-clogging design of pump casing makes the water flow swimmingly.
It is easy to adjust the space between the cutter head and the blade.
The motor is winded by pure copper, low temperature rise and durable.
Overheating protector is equipped , the pump will be stopped if the temperature is too high.
2.2kw single-phase high-head double-blade cutting pump can not only meet the needs of rural biogas digester biogas sludge drainage, septic pond drainage, pond silt removal and other needs, because of its special design,it can be used in industrial sewage , municipal sewage engineering and other environments. And widely used in agriculture, paper industry, chemical industry, municipal sewage, light industry. Solve the sewage problem in harsh environment easily.
Model | Power | Voltage | Flow | Head | Pump casing material | Outlet size | Height | Max diameter | |
kW | Hp | ||||||||
ZJ-1.1-50-JN(large flow) | 1.1 | 1.5 | 220V/380V | 10m³/h | 10m | cast iron/ stainless steel | 25mm/38mm/50mm | 520mm | 260mm |
ZJ-1.5-50-JN(large flow) | 1.5 | 2 | 220V/380V | 15m³/h | 10m | cast iron/ stainless steel | 25mm/38mm/50mm | 540mm | 260mm |
ZJ-1.5-50-JN(high head) | 1.5 | 2 | 220V/380V | 6m³/h | 20m | cast iron/ stainless steel | 25mm/38mm/50mm | 540mm | 260mm |
ZJ-2.2-50-JN(large flow) | 2.2 | 3 | 220V/380V | 25m³/h | 12m | cast iron/ stainless steel | 50mm/65mm | 580/625mm | 290mm |
ZJ-2.2-50-JN(high head) | 2.2 | 3 | 220V/380V | 6m³/h | 28m | cast iron/ stainless steel | 25mm/38mm/50mm | 580/625mm | 300mm |
ZJ-3-75- JN(large flow) | 3 | 4 | 380V | 30m³/h | 15m | cast iron | 75mm | 620mm | 290mm |
ZJ-3-50-JN(high head) | 3 | 4 | 380V | 8m³/h | 35m | cast iron | 25mm/38mm/50mm | 615mm | 320mm |
ZJ-4-75-JN(large flow) | 4 | 5.5 | 380V | 40m³/h | 15m | cast iron | 75mm | 640mm | 290mm |
ZJ-4-50-JN(high head) | 4 | 5.5 | 380V | 8m³/h | 42m | cast iron | 25mm/38mm/50mm | 635mm | 320mm |
The design of the built-in blade can clean up the debris better, reduce the possibility of blockage greatly inside of the machine, and make the drainage more smoothly.
The combination of built-in blade and impeller,while cutting the impurities twice can clean up the impurities entering the impeller effectively and reduce the possibility of blockage inside of the machine.
1.What's your factory main products?
We produce water pumps, especially sewage pump and double-balde cutting pump, and AC motor.
2.Are you a manufacturer ?
We are a manufacturer.
3.How long would it take to receive your goods?
About two weeks after payment.
4.Can you do OEM?
Yes, of course. Any OEM are welcomed!
5.How can I get more product quotation?
Please click the below linkage.
